EG4 EG4-6000XP 6kW Off-Grid Inverter/Charger

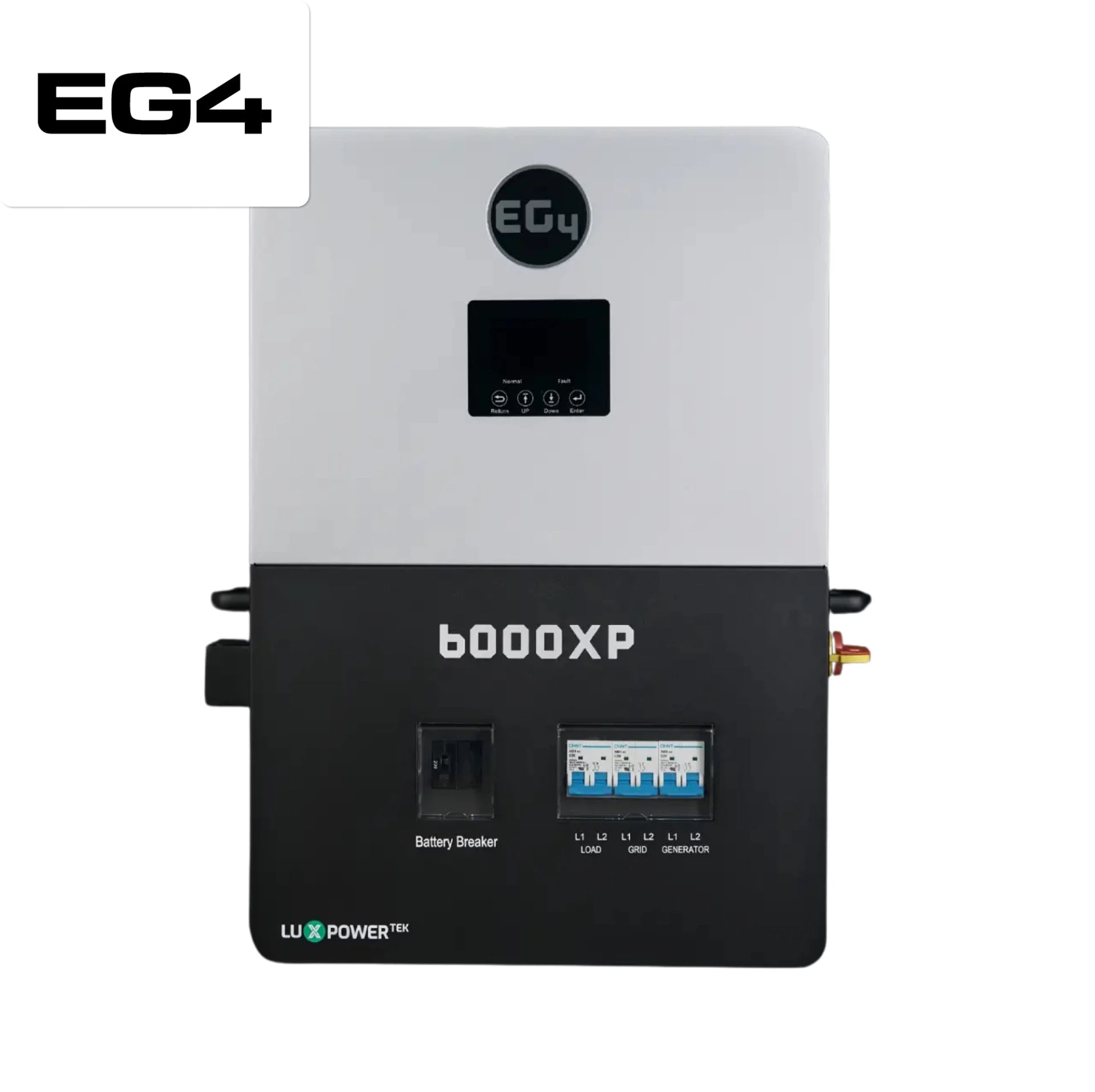

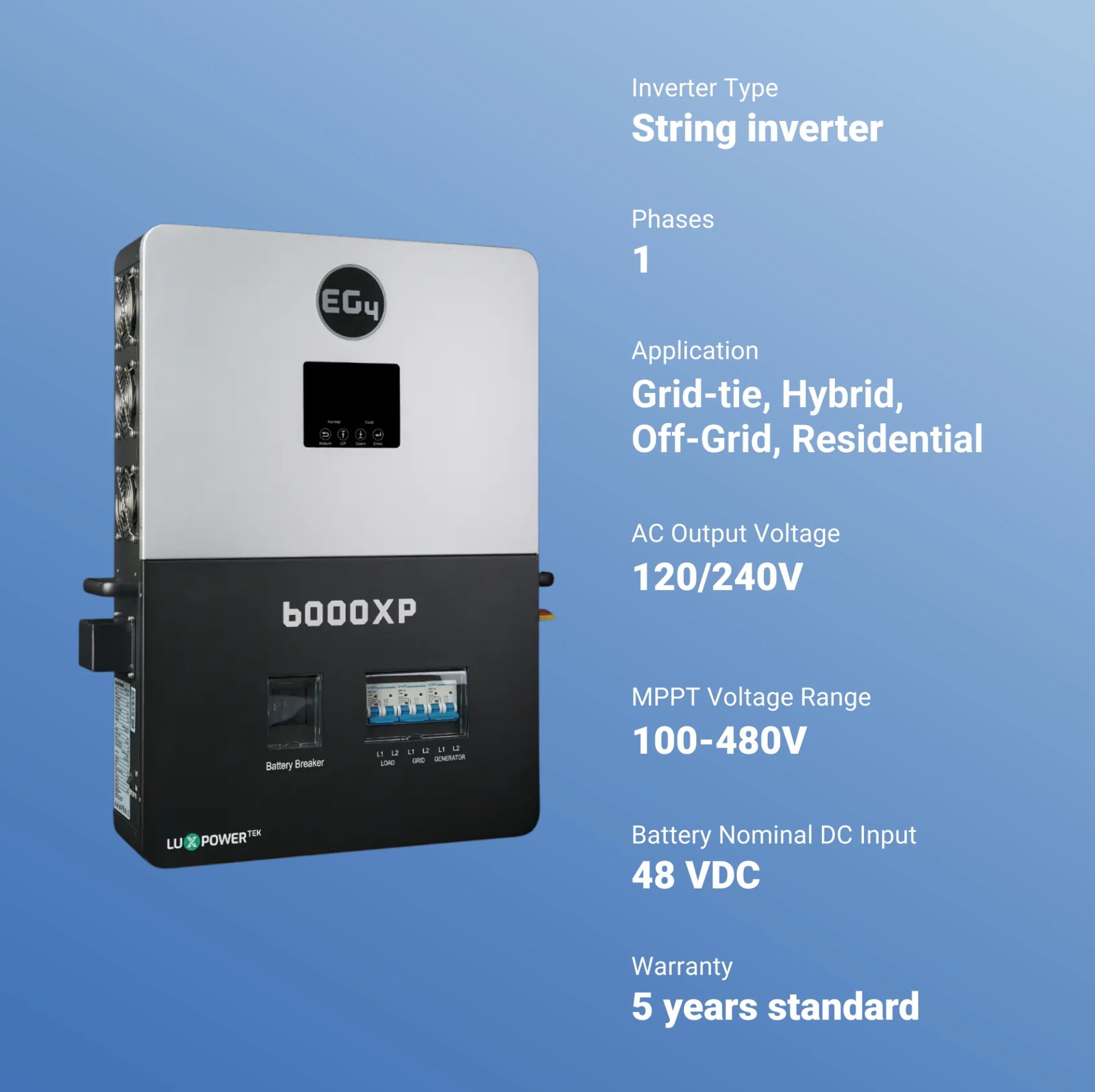

EG4 6000XP — 6kW Split-Phase All-in-One Off-Grid Inverter/Charger

The EG4 6000XP is a compact, feature-loaded all-in-one off-grid inverter/charger built for homeowners, DIY builders, and off-grid enthusiasts. It combines a 6,000W split-phase inverter, dual MPPT solar charge controller, 115A battery charger, and integrated switchgear into a single slim enclosure. At Emston Tech Inc, we recommend the 6000XP for those seeking professional-grade performance and a simplified installation process for homes or cabins.

6,000W Continuous Output with 12kW Surge — Power Your Whole Home
The 6000XP delivers 6,000W of continuous AC output at 120/240V split-phase. This unit handles both standard 120V household circuits and heavy 240V loads such as well pumps, electric dryers, and HVAC equipment. For demanding motor-start loads, the inverter provides a surge capacity of up to 12,000W, ensuring your appliances start reliably without system interruptions.

8,000W of Solar Input & High-Voltage String Support
Equipped with dual MPPT charge controllers operating at 99% efficiency, the 6000XP accepts up to 8,000W of combined PV input. Key advantages include:

• 480VDC Maximum Input: Supports longer, higher-voltage strings, which reduces the need for parallel runs and lowers wiring material costs.
• Dual MPPT Channels: Allows for separate string wiring from different roof orientations, optimizing production independently to eliminate shading losses.
• Efficient Conversion: Maximizes every watt captured from your solar array with minimal waste.

Generator Boost and Integrated Switchgear

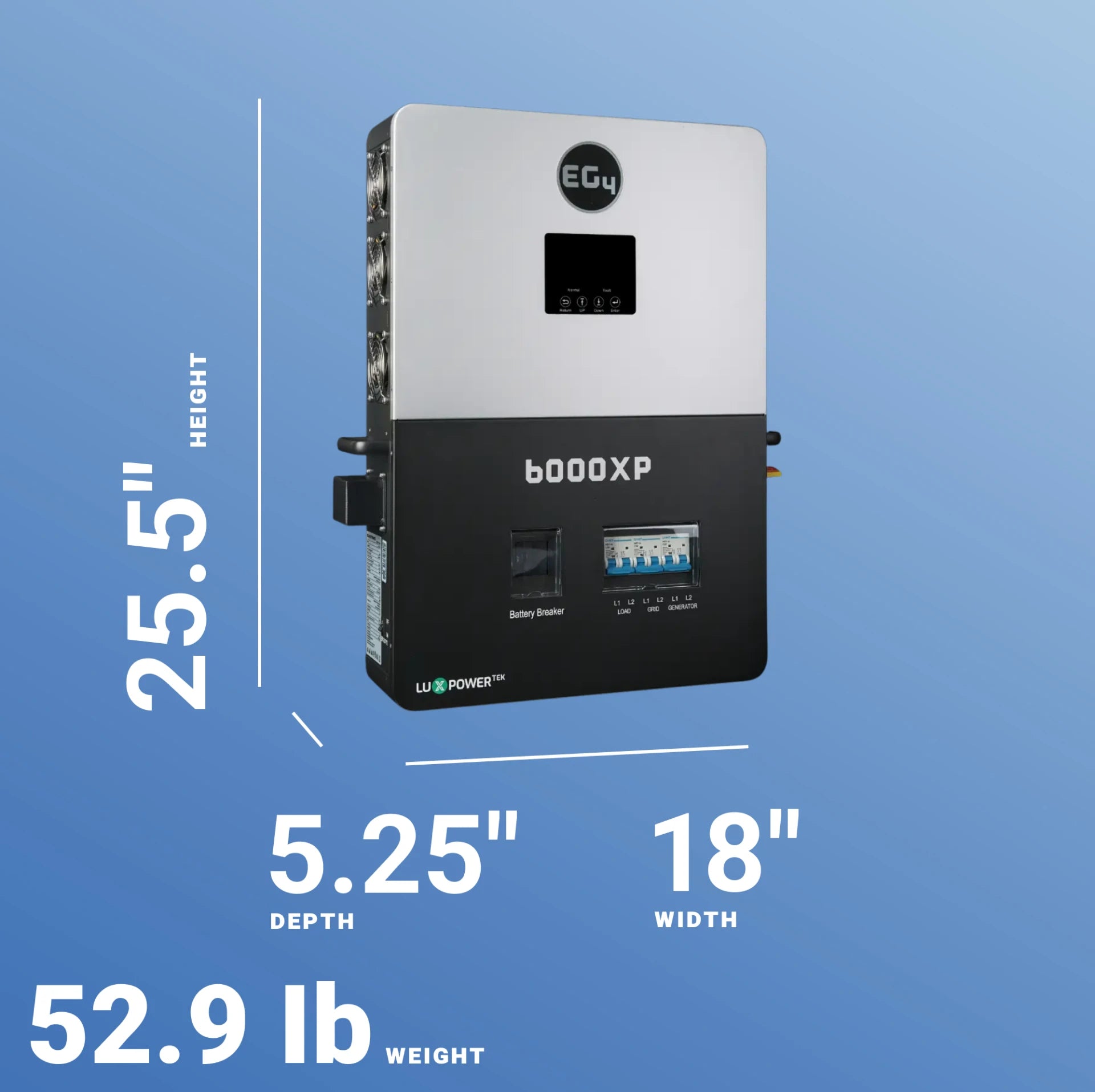

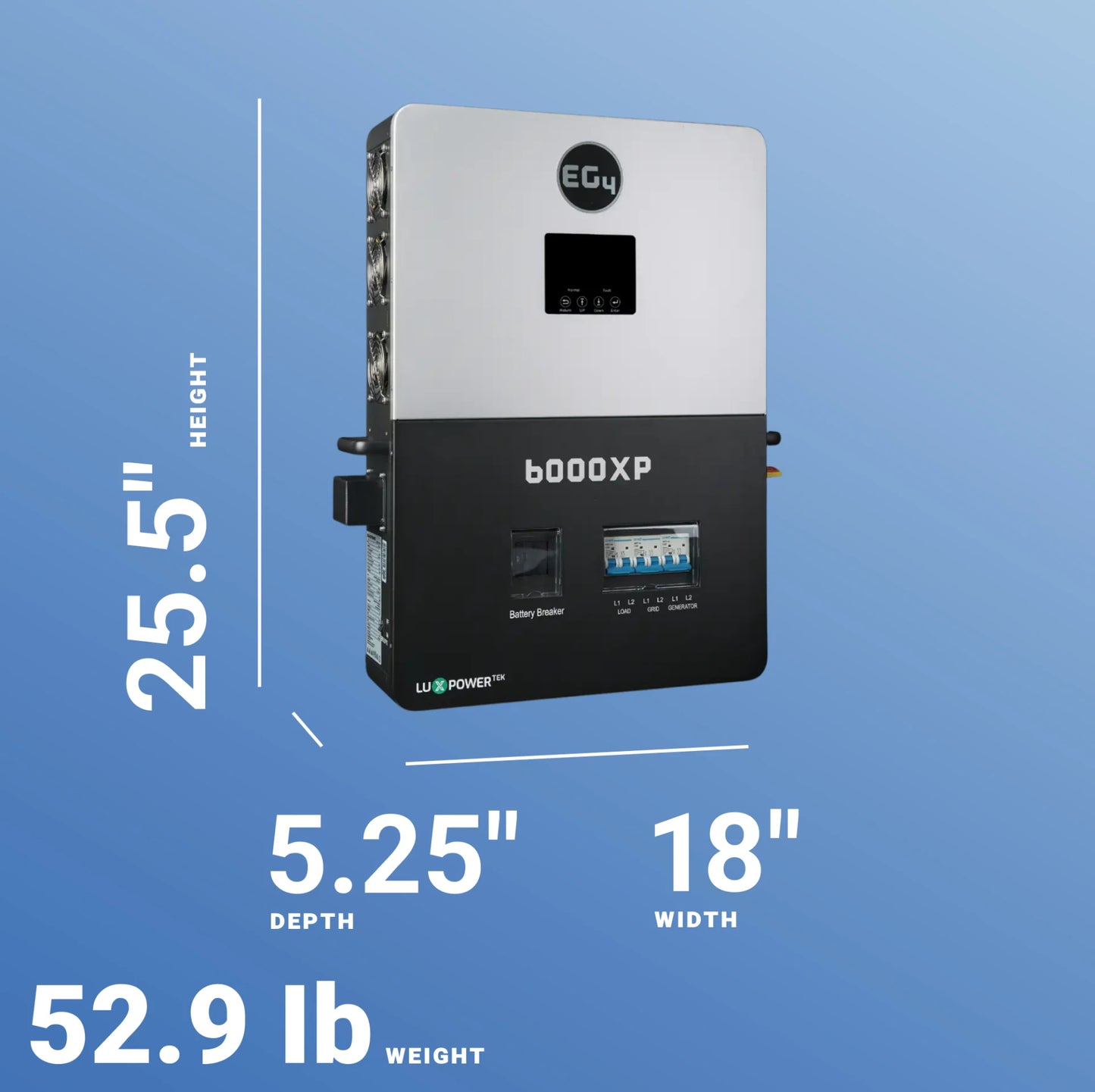

The dedicated generator port supports up to 7kW of power without an external transfer switch. With the "Generator Boost" feature, the inverter automatically supplements generator power with solar and battery energy when loads exceed the generator's capacity. Furthermore, the transformer-free design and built-in breakers keep the system lightweight (52.9 lbs) and the installation footprint clean.

Cold Weather Reliability and Advanced Communication:

• Built-In Heaters: Engineered for cold weather, allowing for reliable operation in unheated garages or exterior mountings in northern climates.
• Closed-Loop Communication: Supports RS485/CAN protocols for EG4 and major third-party 48V lithium batteries, providing precise state-of-charge data.
• Fast Charging: An integrated 115A charger ensures your battery bank is replenished quickly from solar, grid, or generator sources.
• Scalability: Connect up to 16 units in parallel for a massive combined output of up to 96kW.
• Versatile Monitoring: Supports Wi-Fi, 4G, LAN, and RS485 connectivity for remote management via the EG4 Monitoring App.

Certifications and Warranty
The EG4 6000XP is UL 1741 and UL 9540 certified, satisfying the listing requirements of most U.S. authorities for solar and battery storage. Emston Tech Inc provides this unit with a 5-year manufacturer warranty, ensuring long-term reliability for your off-grid energy needs.
