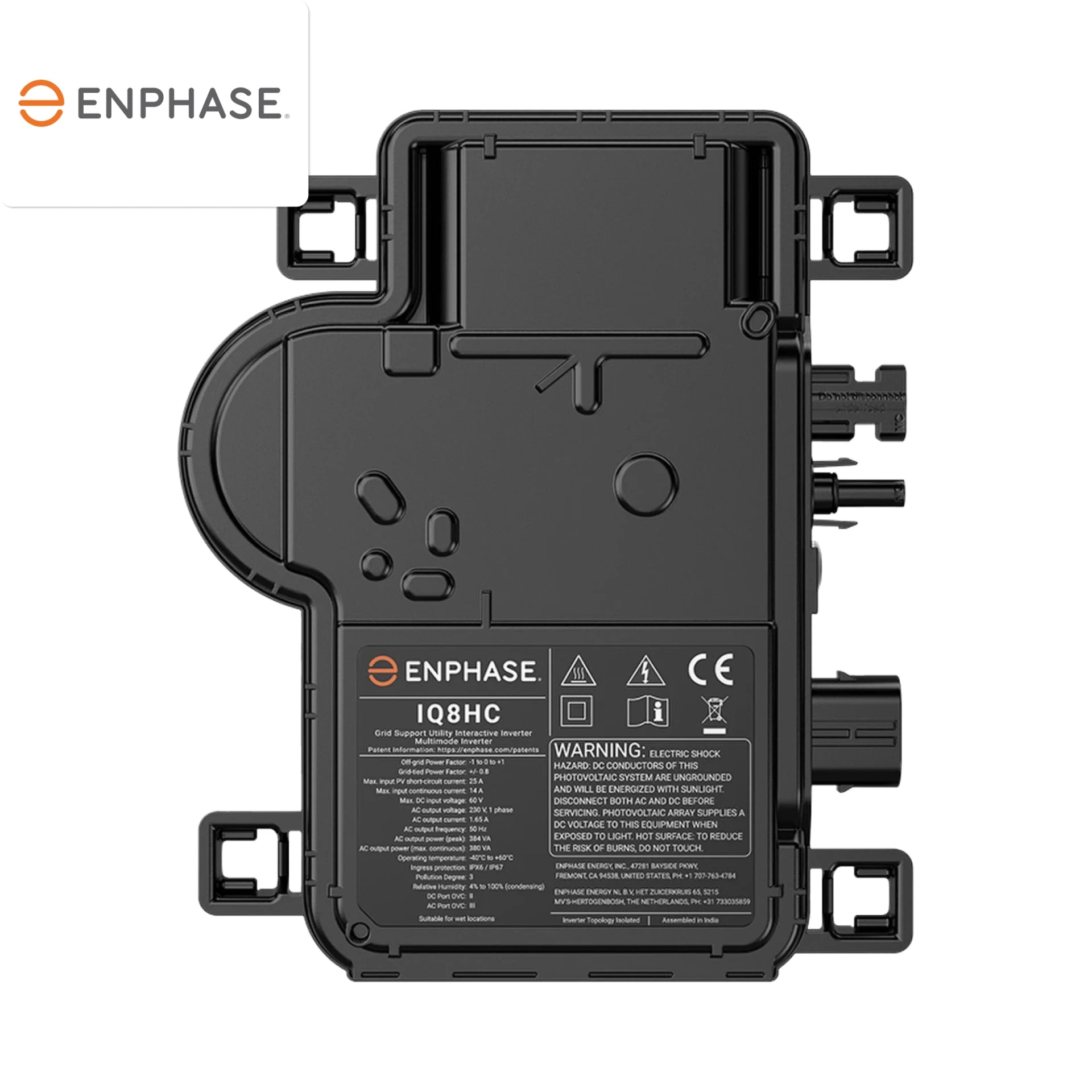

Enphase IQ8HC Microinverter IQ8HC-72-M-US

Enphase IQ8HC Microinverter (IQ8HC-72-M-US) — High-Efficiency Microgrid-Ready Solution

The Enphase IQ8HC Microinverter is a high-efficiency, grid-interactive power converter designed for high-powered solar modules. As part of Enphase’s revolutionary IQ8 Series—the world’s first microgrid-forming, software-defined inverters—it combines advanced semiconductor technology and intelligent grid support. At Emston Tech Inc, we recommend the IQ8HC for residential and small commercial systems looking to maximize performance with industry-leading reliability.

Advanced Microgrid-Forming Technology
Built on proprietary application-specific integrated circuit (ASIC) technology, the IQ8HC operates in both grid-tied and off-grid modes. This next-generation intelligence allows for ultra-fast response to grid disturbances. When paired with the IQ System Controller through Emston Tech Inc, this microinverter ensures power stability and microgrid capability for battery-backed or grid-independent systems.

High Output and Superior Efficiency

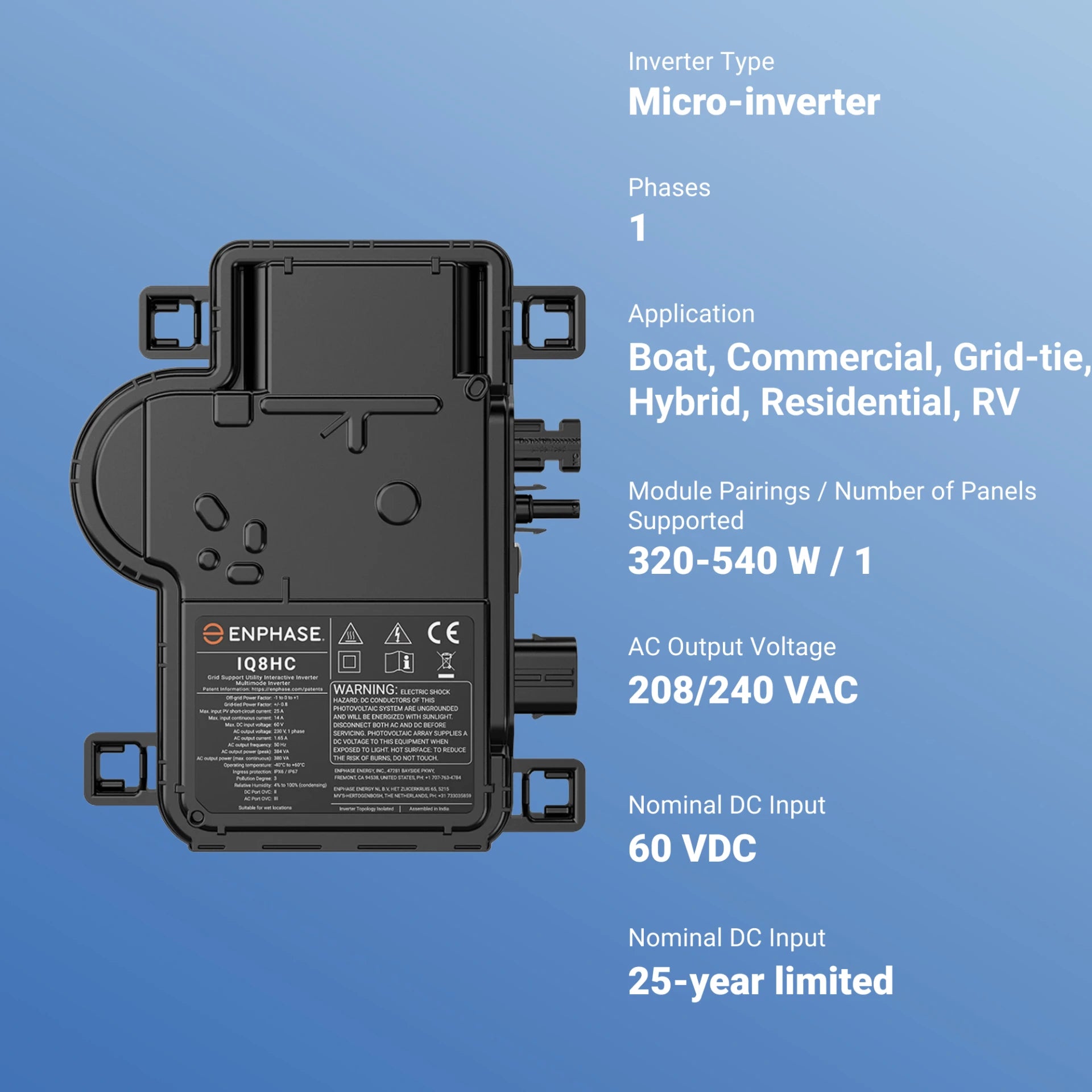

Optimized for modern, high-output PV modules (320–540W), the IQ8HC delivers exceptional energy conversion. Key performance specs include:

• Continuous Output Power: 380 VA @ 240V
• Peak Output Power: 384 VA
• Efficiency: 97.3% peak efficiency / 97.0% CEC weighted efficiency
• MPPT Voltage Range: 29.5–45V for superior energy harvesting
• Max DC Input: 60V maximum voltage and 14A continuous current

Durable, Safe, and Code-Compliant
The IQ8HC is UL Listed as PV rapid shutdown equipment, meeting NEC 2014 through 2023 codes for complete compliance and safety. Its NEMA Type 6 / IP67 rated enclosure is corrosion-resistant and double-insulated, ensuring long-lasting operation in extreme environments ranging from -40°F to 149°F.

Smart Grid-Ready Performance & Seamless Integration

• Grid Compliance: Fully compliant with UL 1741-SB, IEEE 1547:2018, and CA Rule 21, supporting advanced services like Volt-Var and Volt-Watt control.
• Unified Management: Integrates effortlessly with the IQ Battery and IQ Gateway for full system visibility via the Enphase App.
• Simplified Installation: Features plug-and-play MC4 connectors and power line communication (PLC) for fast, reliable setup.
• Remote Updates: Supports remote firmware updates to adapt to evolving grid profiles without site visits.

Physical Specifications:

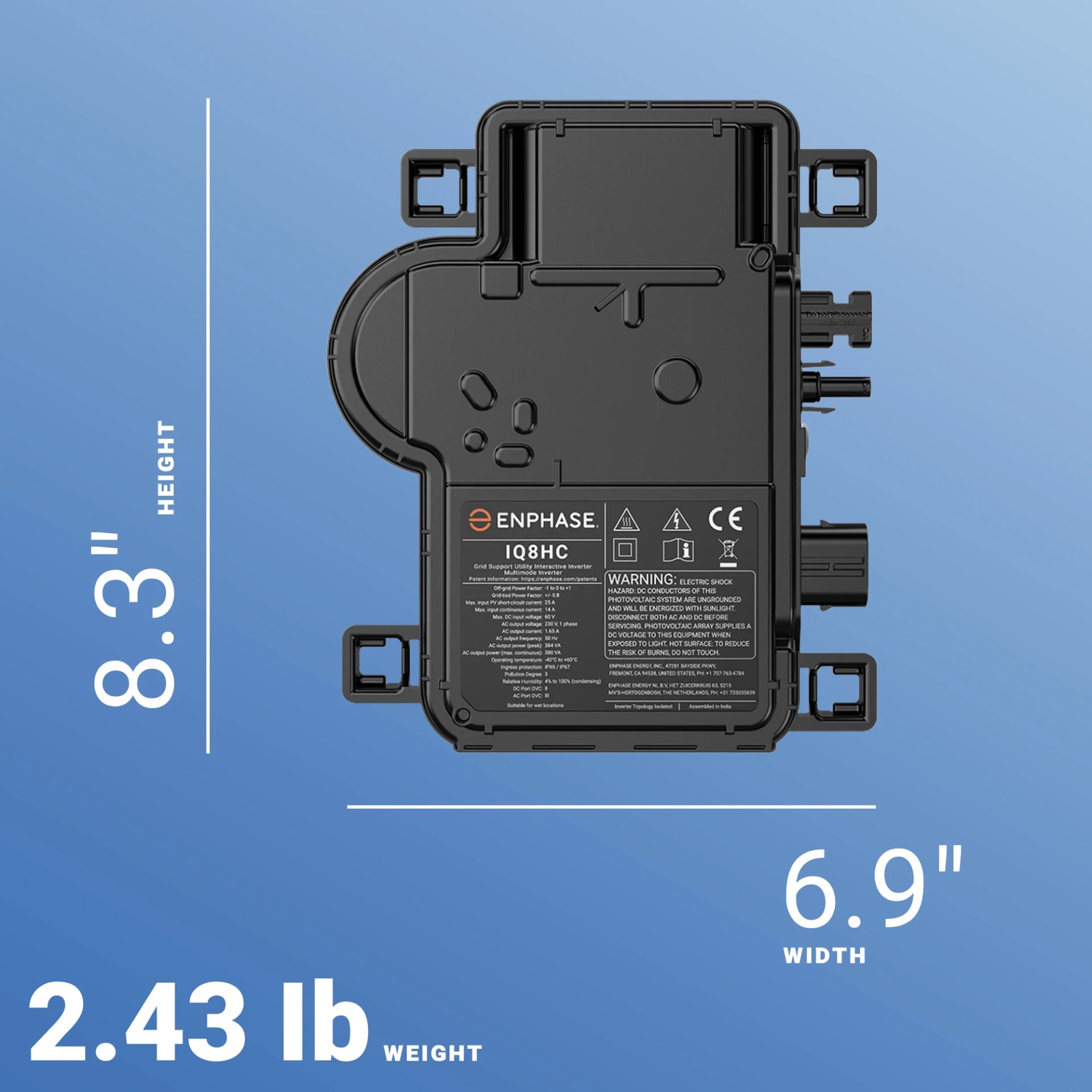

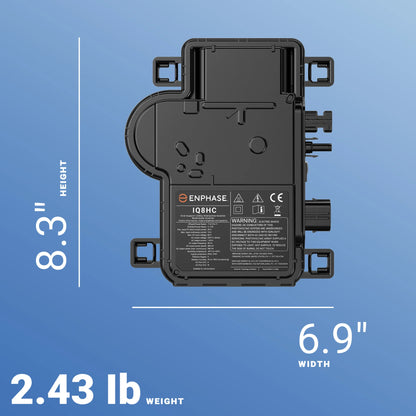

• Dimensions: 6.9" x 1.2" x 8.3"
• Weight: 2.43 lb
• Cooling: Natural convection (no moving parts)

25-Year Limited Warranty
Each IQ8HC microinverter undergoes over one million cumulative hours of reliability testing. Emston Tech Inc provides these units with a 25-year limited warranty, ensuring your investment is protected for the long term.
