Hyundai 405W Solar Panel 132 Half-Cell Bifacial HiS-S405YH(BK) Clearance

The Hyundai HiS-S405YH(BK), available through Emston Tech Inc, is a standout model in the YH Dual Black Max Series—one of the most advanced lines recently developed by Hyundai. These panels integrate cutting-edge technologies to achieve superior efficiency and long-term reliability. By utilizing Passivated Emitter Rear Contact (PERC) technology with an additional reflective layer, the cells are able to absorb more sunlight and ensure excellent power output.

A significant advantage of this model is the half-cut cell technology. The HiS-S405YH(BK) features solar cells half the size of those in conventional panels, resulting in decreased power loss, improved longevity, and better performance in low-light conditions. This model offers a surprising 20.3% efficiency for its size. Furthermore, as a bifacial module, it absorbs photons from both sides simultaneously, potentially increasing overall efficiency by up to 30%. Beyond performance, Emston Tech Inc provides a module with a sleek, jet-black finish and a 1.38" depth that ensures high-end aesthetics without compromising durability. Hyundai backs this quality with a 25-year product warranty and a 25-year performance warranty.

• 132 half-cut PERC cells
• 405 W nameplate capacity
• 20.3% efficiency
• 1500 V DC maximum system voltage
• MC4 connectors
• 25-year product and 25-year performance warranties
• Enhanced power and efficiency via PERC technology

The high efficiency of 20.3% is further optimized by solid PID resistance and specialized glass lamination. Under standard test conditions, the HiS-S405YH(BK) outputs a reliable 405 W of power, ensuring that Emston Tech Inc customers receive consistent energy yields for their residential or commercial projects.

Exceptional performance in scorching weather

Maintaining efficiency at high operating temperatures is a core strength of this module. With a very low temperature coefficient, the HiS-S405YH(BK) experiences an efficiency loss of just 0.032% for every 1.8°F increase above 77°F, allowing for stable energy generation during the peak heat of the day.

High quality standards

Hyundai’s stringent production requirements include various rigorous tests to guarantee high quality. The manufacturing facilities are highly automated, allowing for the maintenance of strict standards and ensuring that Emston Tech Inc delivers a product with minimal warranty claims and maximum reliability.

Reliability and degradation resistance

Hyundai guarantees slow degradation over a 25-year period. Performance will decrease by no more than 2% during the first year and only 0.25% annually thereafter. This ensures your modules will retain at least 85.04% of their original performance after 25 years, all supported by a generous 25-year product warranty.

Certified for the most challenging environmental conditions

The HiS-S405YH(BK) is highly resistant to PID, salt, acid, and ammonia. It is built to withstand significant mechanical loads of up to 5400 Pa on the front and 4000 Pa on the back. This robustness is primarily due to the 1.38" thick anodized aluminum frame and a layer of protective tempered glass.

Outstanding all-black design

The panel features a sleek, all-black style that complements any roof beautifully. Through specialized treatment and selection procedures, the manufacturer ensures optimum cell color uniformity. Thinner wires connect the cells, making the surface of the modules appear seamless and smooth from a distance.

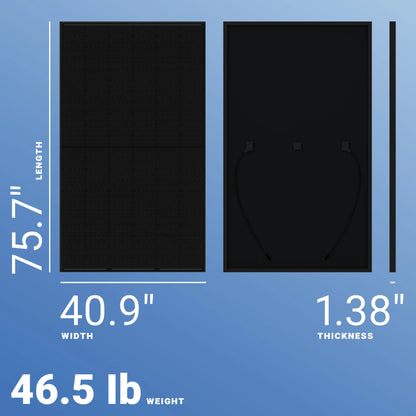

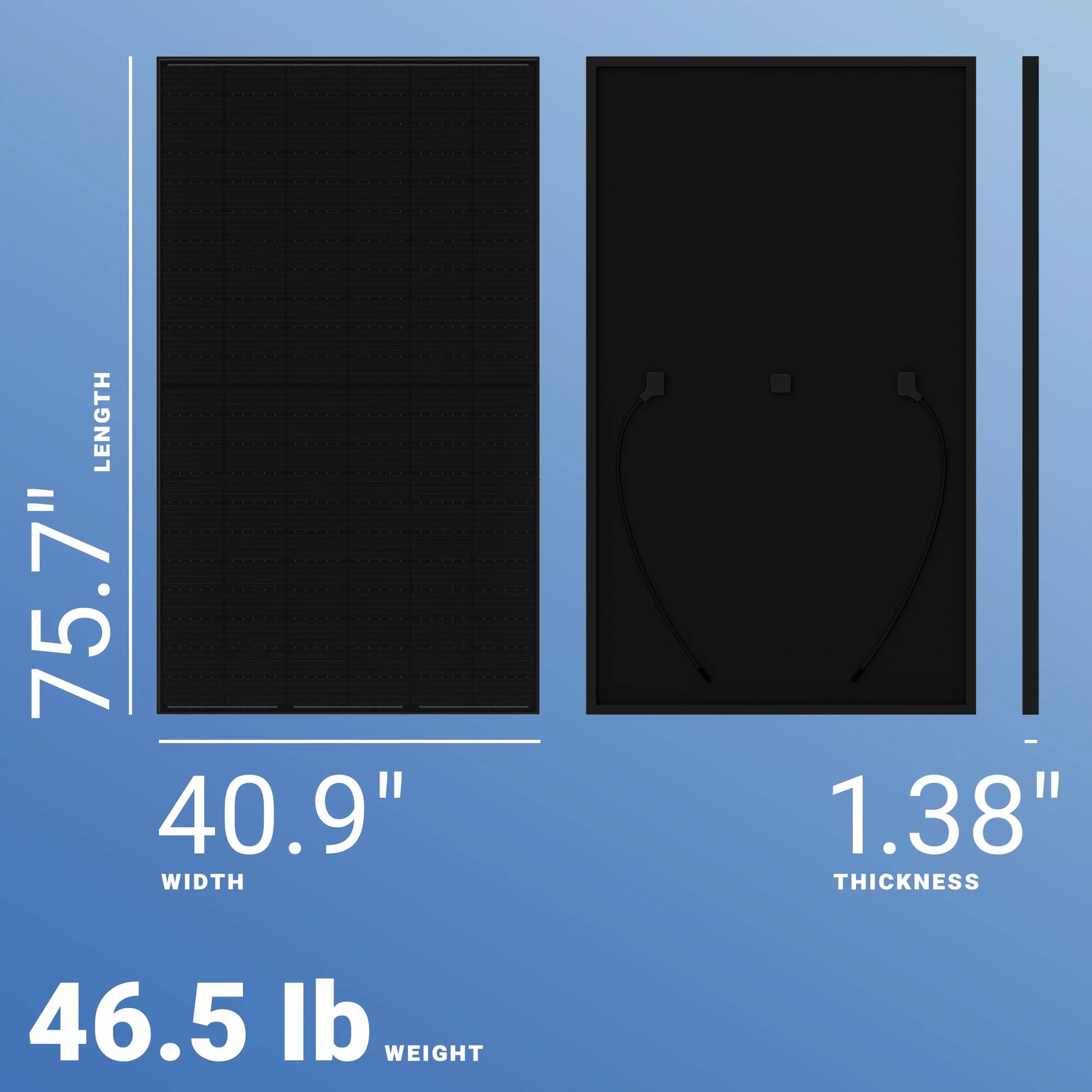

Size
75.74" x 40.86" x 1.26"

Weight
46.5 lb
