JA Solar 595W Solar Panel 144 Cell Bifacial JAM72D40-595/MB-US

JA Solar Deep Blue 4.0 Series JAM72D40-595/MB-US — 595W N-Type Bifacial Double Glass Module

The JAM72D40-595/MB-US is a centerpiece of the Deep Blue 4.0 Series, representing the latest in JA Solar’s high-efficiency PV technology. Designed for superior reliability and output, this module utilizes N-Type cell architecture and a bifacial design to push the boundaries of modern energy production. At Emston Tech Inc, we provide this robust 595W panel as an ideal solution for high-yield residential, commercial, and utility-scale installations.

Advanced N-Type Bifacial Technology
This model features 144 half-cut N-Type cells, which are specifically engineered to decrease power loss and improve longevity compared to conventional cells. With a module efficiency of 23.0%, the JAM72D40-595/MB-US captures photons on both the front and back sides simultaneously. Depending on the installation environment, this bifacial capability can increase total energy production by up to 30%.

Exceptional Performance in Scorching Weather
Heat is a significant factor in solar performance, but the Deep Blue 4.0 Series is built to stay productive even in extreme temperatures. It boasts one of the lowest temperature coefficients in the industry, losing just -0.29% of efficiency for every 1.8°F (1°C) above the standard 77°F (25°C). This ensures that your system at Emston Tech Inc continues to deliver high power output during peak summer conditions.

Reliability and Industry-Leading Longevity
JA Solar maintains high-quality standards through highly automated manufacturing and stringent testing. This module is built for an extended 30-year operational life with an industry-leading degradation profile:

• First Year: Performance decline is limited to no more than 1%.
• Years 2–30: Annual power drop is capped at just 0.4%.
• 30-Year Guarantee: Modules retain at least 87.4% of their original performance after three decades.

Built for Extreme Weather and Durability
The JAM72D40-595/MB-US is certified to withstand the most challenging environmental stressors, including salt, acid, and ammonia. Its structural integrity is anchored by a 1.38" anodized aluminum alloy frame and protective tempered glass, enabling it to handle heavy mechanical loads:

• Front Load (Snow): Up to 5400 Pa
• Back Load (Wind): Up to 2400 Pa
• Electrical Safety: Rated for a maximum system voltage of 1500 V DC.

Technical Specifications:

• Power Output: 595 W
• Module Efficiency: 23.0%
• Cell Type: 144 Half-cut N-Type cells
• Connectors: QC 4.10-351 / MC4-EVO2

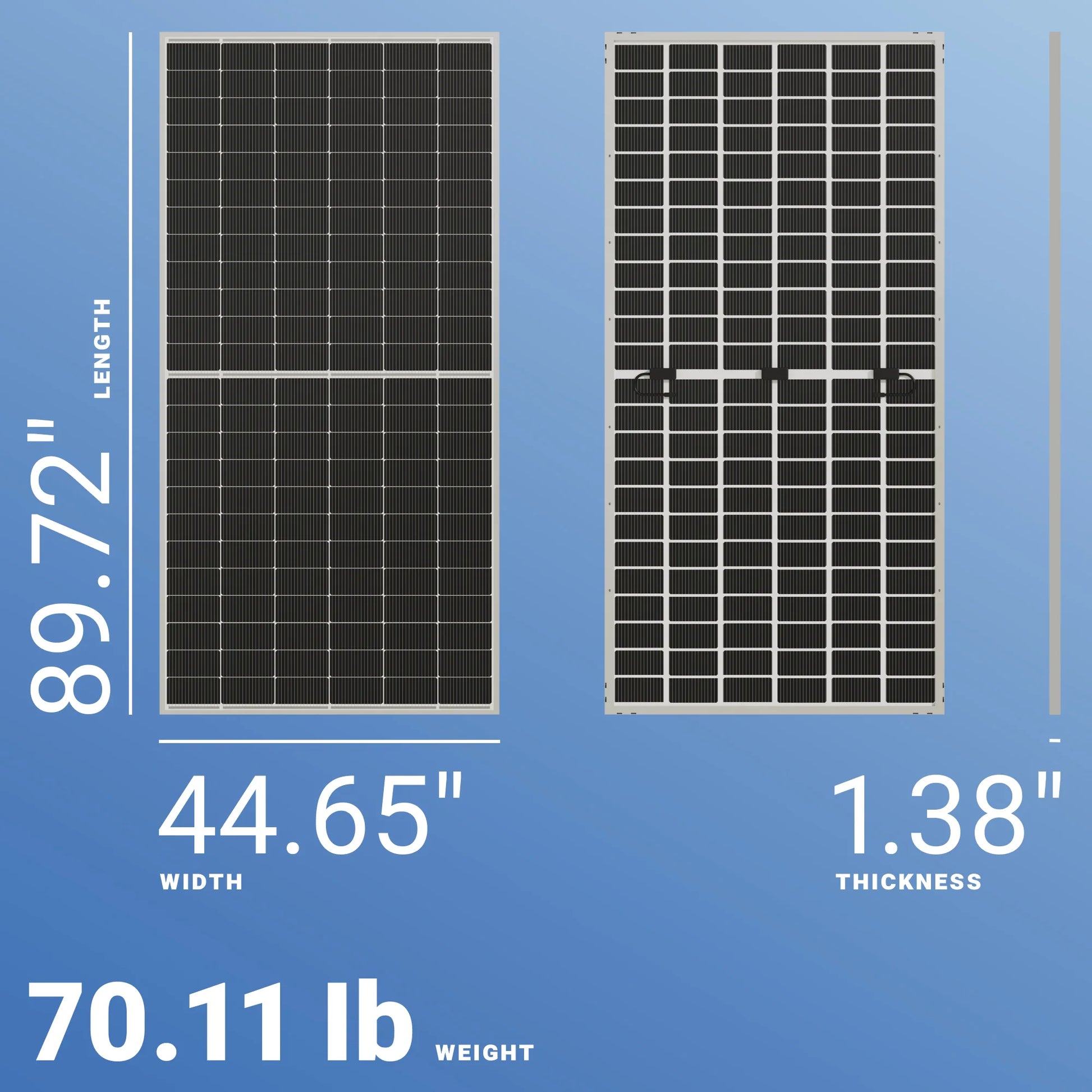

• Dimensions: 89.72" x 44.65" x 1.38"
• Weight: 70.11 lb

Warranty
The JAM72D40-595/MB-US is backed by a 12-year product warranty and a 30-year linear power output warranty. Trust Emston Tech Inc to provide the high-quality, long-lasting solar technology required for your energy future.
