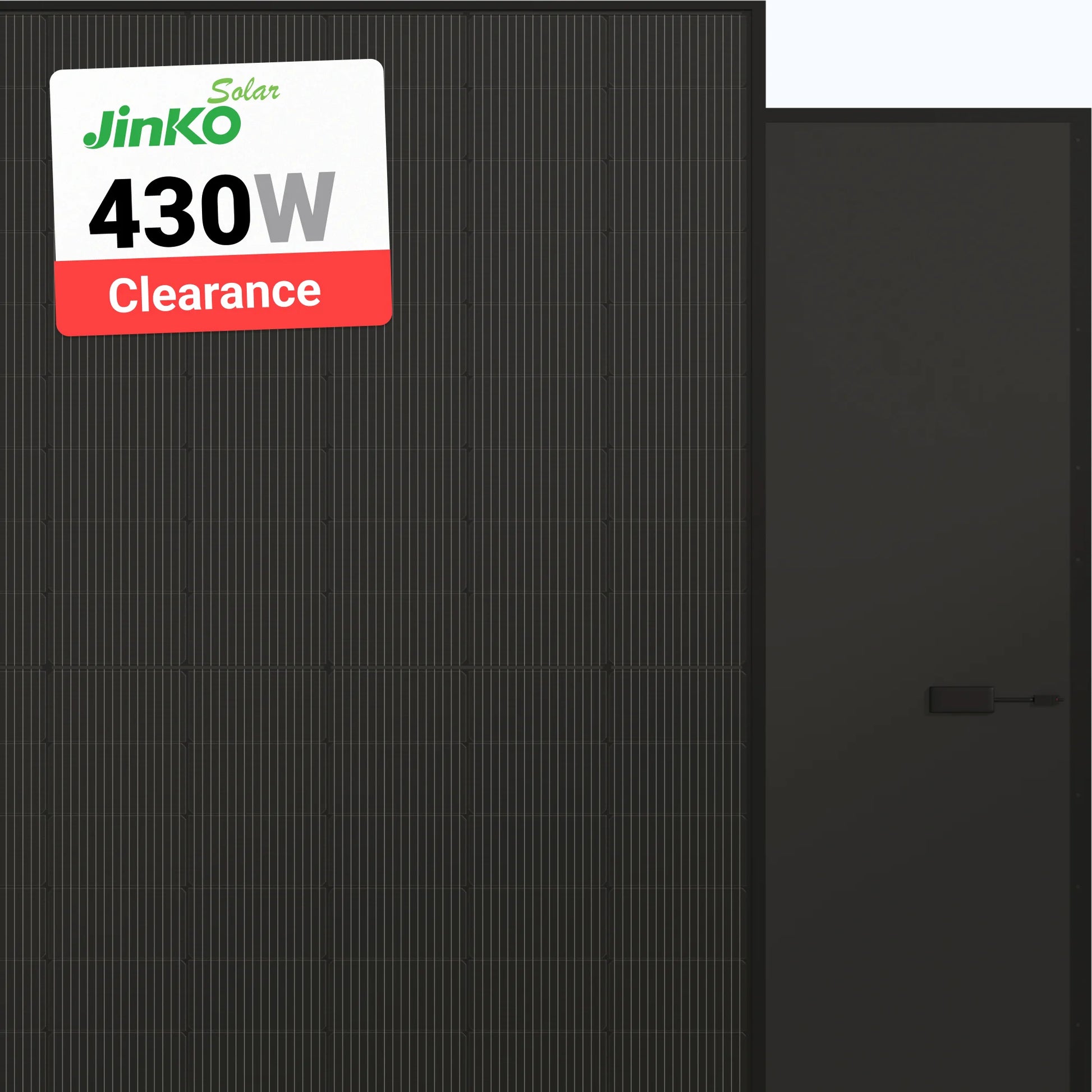

Jinko Solar 430W Solar Panel 108 Cell All-Black JKM430N-54HL4-B Clearance

The JKM430N-54HL4-B, offered by Emston Tech Inc, is a high-performance solar module engineered to deliver superior durability and energy production. Utilizing advanced Passivated Emitter Rear Contact (PERC) technology, this model features an additional reflective layer within the cells to capture more sunlight and ensure excellent power output for your energy needs.

To further enhance its performance, the JKM430N-54HL4-B incorporates half-cut cell technology. By using solar cells that are half the size of those found in standard panels, this module achieves reduced power consumption, extended operational life, and enhanced efficiency in low-light conditions. At 20.02% efficiency, it offers surprising performance for its weight and size. Emston Tech Inc provides this model with a generous 25-year product warranty from Jinko, along with a guarantee that the panel will retain at least 87.4% of its original performance after 30 years of operation.

• 430 W power output
• 108 half-cut PERC cells
• 20.02% efficiency
• 1000 V DC maximum system voltage
• Staubli MC4 connectors
• 25-year product and 30-year performance warranties
• Increased efficiency of up to 20.02 percent

The JKM430N-54HL4-B ensures maximum power production by combining PERC technology with a powerful antireflective coating. This results in a 20.02 percent module efficiency—significantly higher than the industry average—resulting in substantial extra savings for Emston Tech Inc customers over the years of production.

Keeping the cool in high temperatures

Even under extreme heat, the JKM430N-54HL4-B maintains high efficiency. You can take full advantage of the sunniest hours of the day because the module loses just -0.29% of efficiency for every 1.8°F over 77°F.

Quality and reliability

The JKM430N-54HL4-B undergoes multiple quality checks throughout the manufacturing process and is subject to stringent reliability testing. The highly automated manufacturing facilities eliminate the risk of human error, ensuring that Emston Tech Inc delivers a product dedicated to quality, safety, and long-term dependability.

Reliability and degradation resistance

Slow degradation over 30 years is guaranteed. The performance will decrease by no more than 2% during the first year and just 0.25% annually thereafter. This ensures your modules will retain at least 87.4% of their original performance after three decades, providing a reliable return on investment.

Certified for the worst environmental conditions

This module is resistant to PID, salt, acid, and ammonia, making it suitable for a wide range of climates. It is built to withstand mechanical loads of up to 5400 Pa on the front and 2400 Pa on the back. This durability is primarily due to the 1.38" thick anodized aluminum alloy frame and a layer of protective tempered glass.

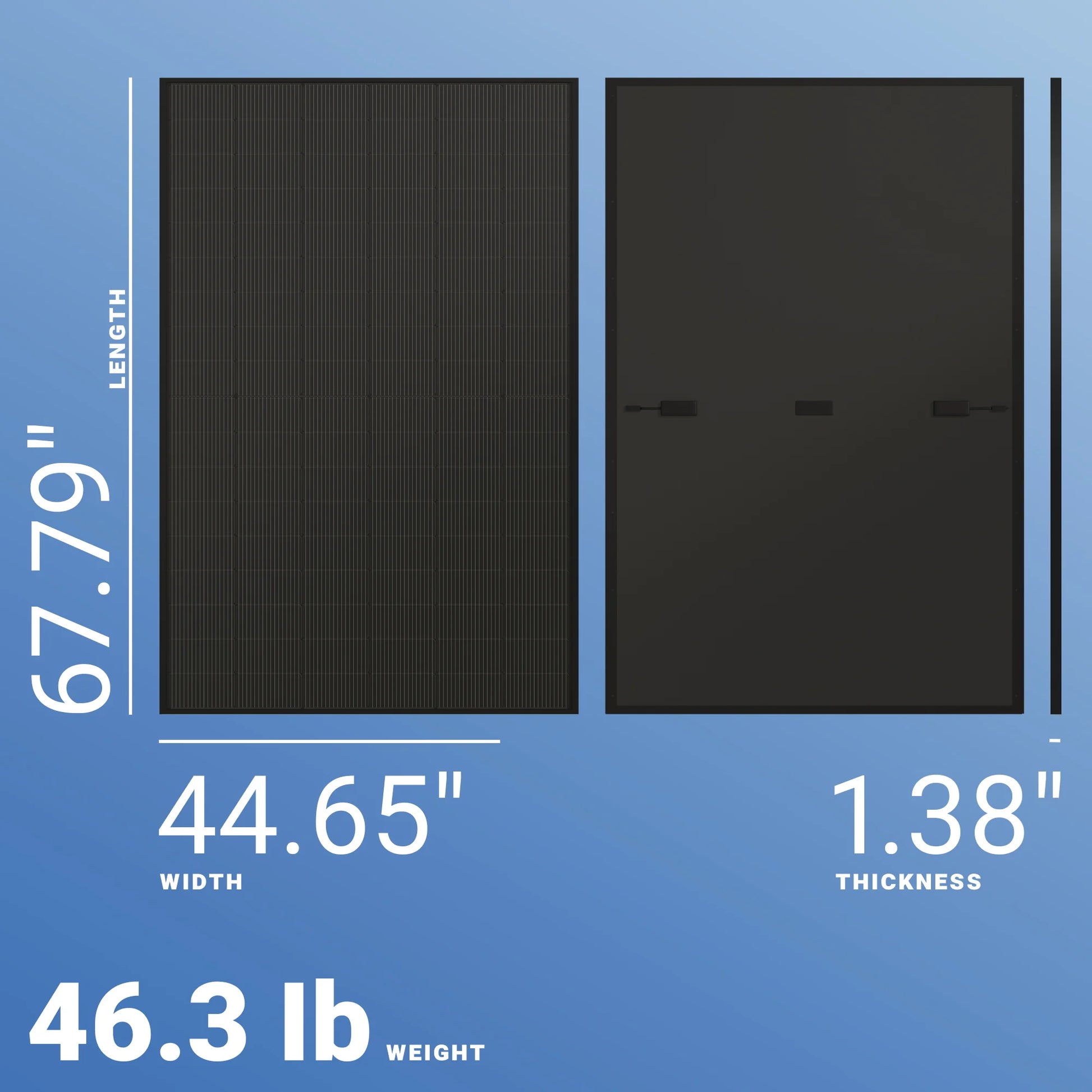

Size
67.79" x 44.65" x 1.38"

Weight
46.3 lb
