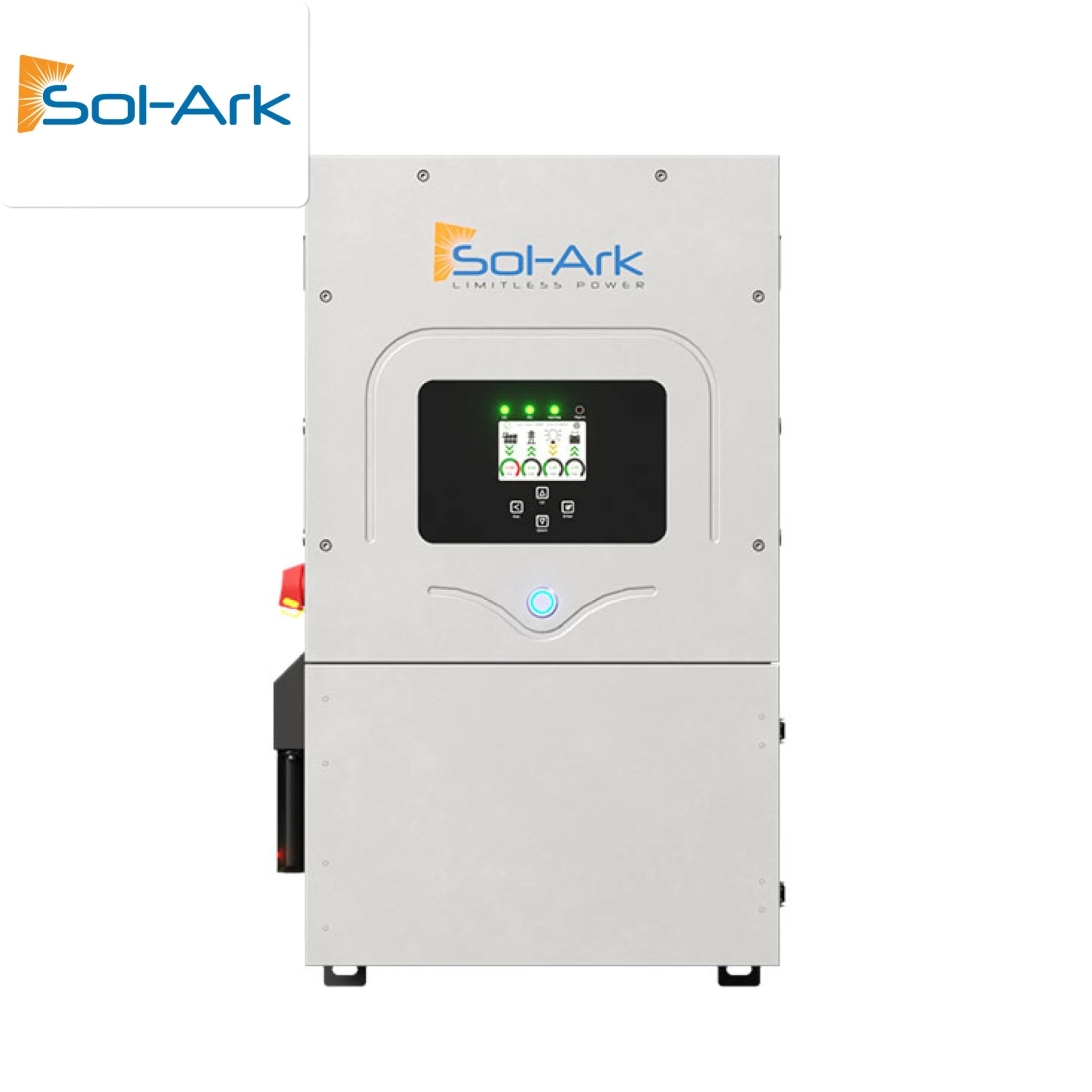

Sol-Ark SA-12K-2P 12kW Hybrid Inverter

Sol-Ark 12K-2P — Complete Home Energy Control in One Intelligent Unit

The Sol-Ark 12K-2P is the all-in-one hybrid inverter that transforms how you power your home. Seamlessly integrating solar, battery storage, generator backup, and grid power, this versatile system delivers true energy independence without the complexity of multiple components. At Emston Tech Inc, we provide this comprehensive solution to ensure your home remains powered through any situation.

Powerful & Reliable Performance
The Sol-Ark 12K-2P offers 9 kW continuous AC output with up to 16 kVA off-grid surge capacity. Its 25,000 VA peak surge power handles demanding appliance startups with ease. Operating at 97.5% peak efficiency (96.5% CEC-weighted), it ensures minimal energy loss. Additionally, the 4 ms transfer time provides a nearly instantaneous transition for uninterrupted backup power during grid failures.

Smart Solar Integration
Designed for maximum harvesting, the dual MPPT design features a wide 150–500V operating range and supports up to 13,000W of maximum PV input. The system's intelligent power flow automatically prioritizes solar and battery use over grid power to maximize savings. For a cleaner and safer setup, Emston Tech Inc provides these units with built-in PV and AC disconnects to simplify installation and ensure full code compliance.

Complete Backup Solution
The Sol-Ark 12K-2P supports grid-tied, off-grid, or hybrid operation modes. It features automatic generator start (2-wire) integration and supports both lithium and lead-acid batteries with advanced BMS communication. This allows for a seamless transition between solar, grid, generator, and battery sources depending on your real-time needs.

Expandable & Future-Ready

• Scalability: Parallel up to nine units for larger residential or light commercial installations.
• Monitoring: Built-in Wi-Fi and LAN monitoring for real-time system control via your devices.
• Integration: CANBus and RS485 MODBUS communication for smart device and battery integration.
• Management: Dynamic charge control and automated energy management for optimal efficiency.

Built to Last
The rugged IP65 / NEMA 3R enclosure allows for flexible indoor or outdoor installation. Safety is a priority with integrated arc-fault detection, ground fault protection, rapid shutdown capability, and comprehensive surge protection. The unit is fully certified with UL 1741 SB, IEEE 1547, CA Rule 21, and HECO Rule 14H listings.

One Inverter. Infinite Possibilities.
Whether you are looking to reduce energy costs, prepare for outages, or achieve complete energy independence, the Sol-Ark 12K
