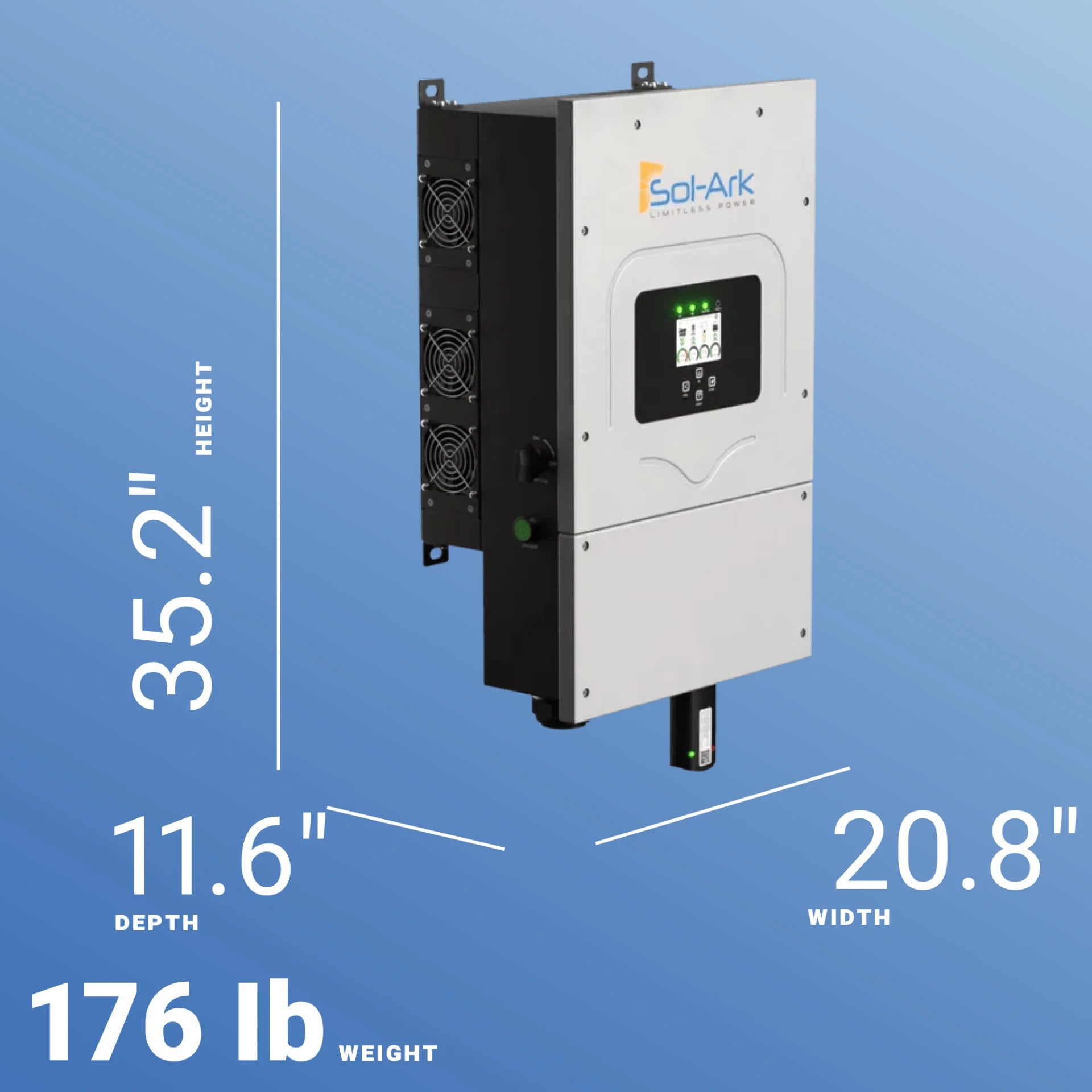

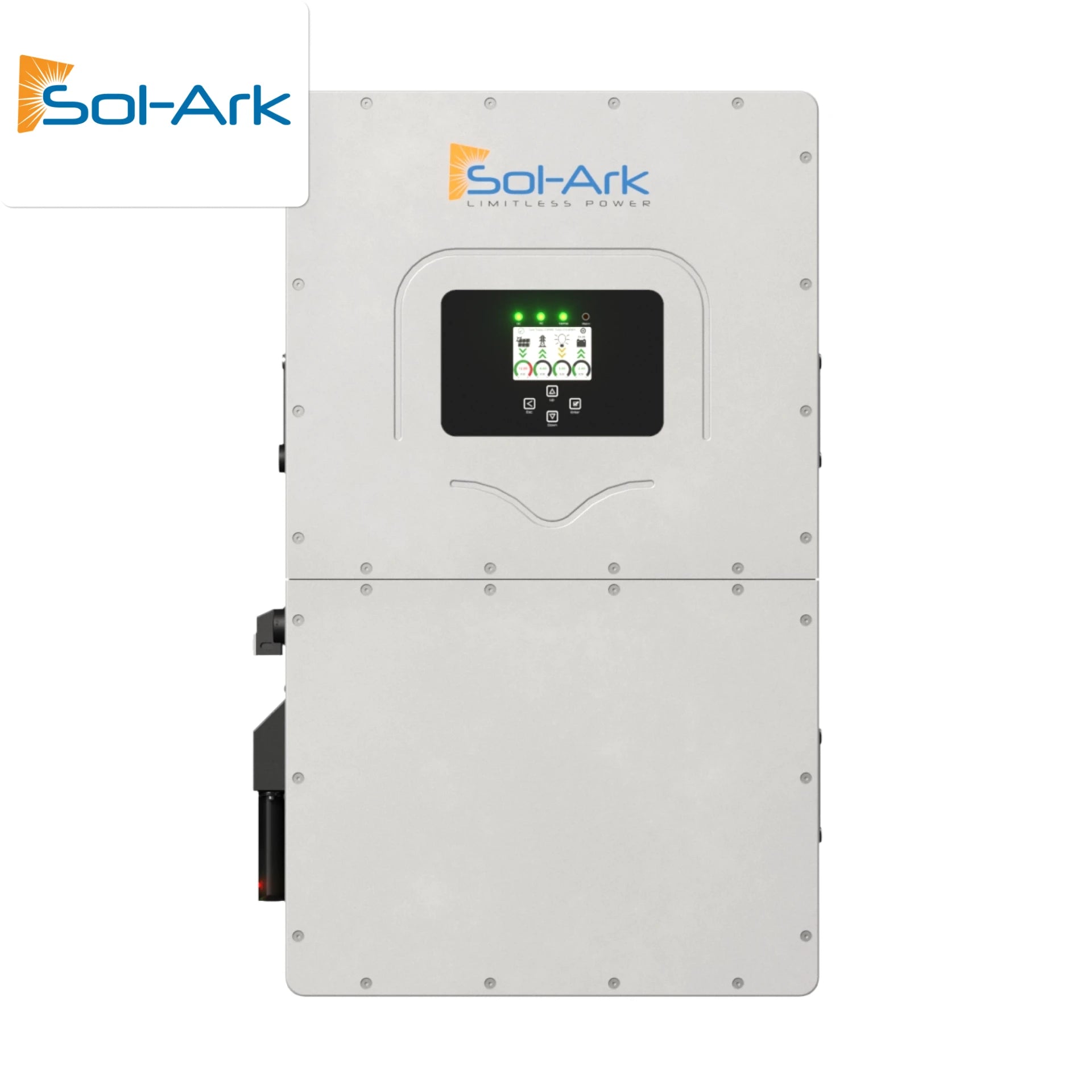

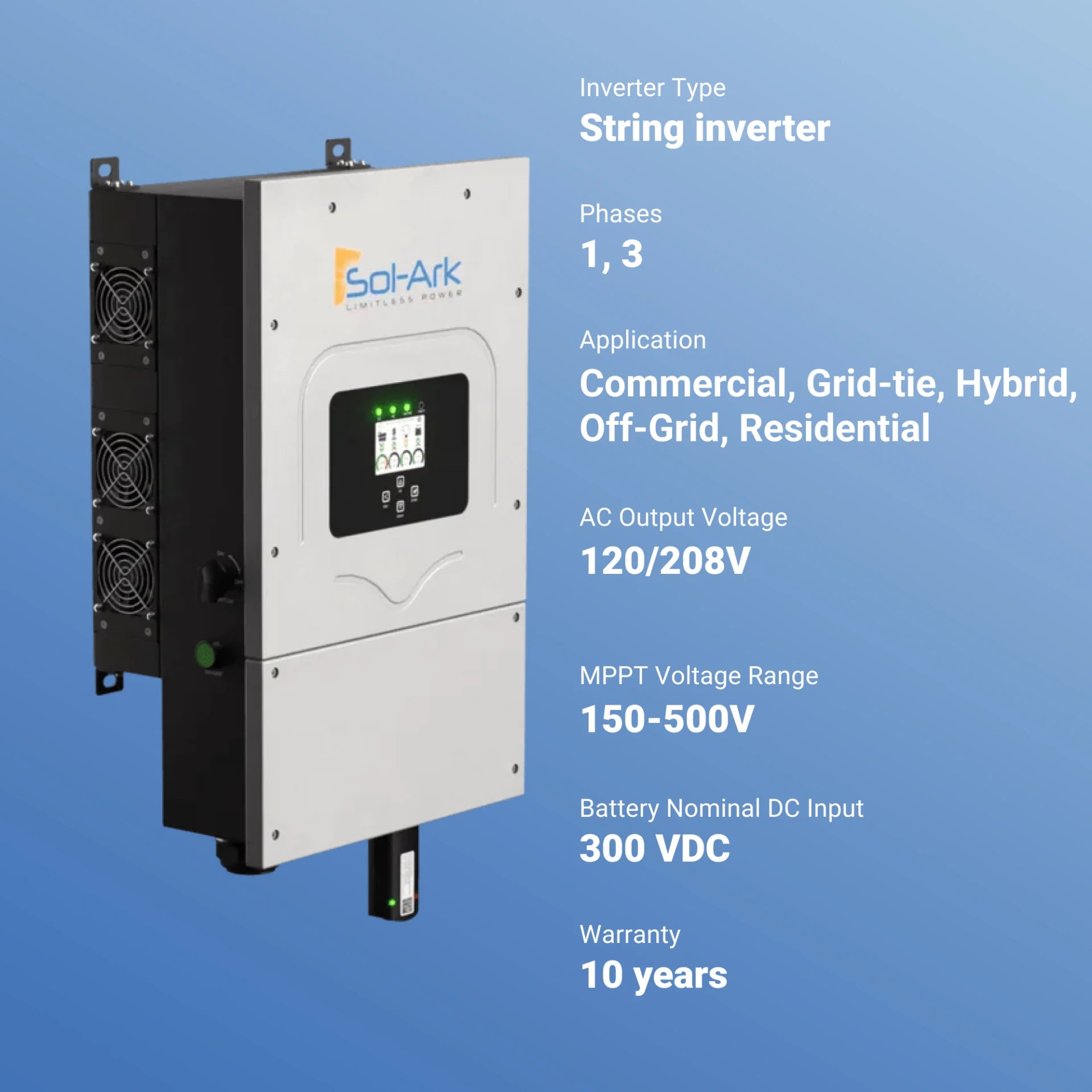

Sol-Ark SA-30K-3P 30kW Hybrid Inverter

The Sol-Ark SA-30K-3P is a commercial-grade, pre-wired all-in-one hybrid inverter built for businesses, light industrial facilities, farms, and large residential properties. Delivering 30,000W of continuous three-phase AC output, it is engineered to keep critical operations running—whether the grid is up or not.

Key Performance Features

• 30kW Continuous Three-Phase Output: Standard 120/208V configuration ideal for commercial buildings, manufacturing, and three-phase motors.
• 5ms Transfer Time: Near-seamless backup power that keeps sensitive electronics, PLCs, and refrigeration running without interruption during a grid failure.
• Four MPPT Channels: Supports up to 39,000W of DC solar input, allowing for complex rooftop configurations and maximizing energy harvest.
• High-Voltage Battery Support: Operates in the 150–550V range for reduced wiring losses and superior round-trip efficiency at scale.

Advanced Integration & Efficiency

• 200A Built-in Transfer Switch: Simplifies electrical design and reduces installation footprint—no separate ATS hardware required.
• AC & DC Coupling: Retrofit-friendly design that works with new installations or existing grid-tied systems.
• Demand Charge Reduction: Built-in peak shaving tools to monitor consumption and discharge battery power during expensive peak windows.
• VPP Ready: Supports Virtual Power Plant protocols for participation in utility demand-response and grid services revenue programs.

Scalability & Reliability

• Scalable Architecture: Parallel up to 10 units for a massive 300kW total system output.
• All-in-One Design: Ships factory pre-wired with AFCI, GFCI, and rapid shutdown for faster permitting and cleaner installation.
• Remote Monitoring: Built-in Wi-Fi and Ethernet for real-time tracking of production and system health via U.S.-based servers.
• Commercial-Grade Durability: IP65/NEMA 3R rated for outdoor use, backed by a 10-year warranty.

Certifications: UL 1741-SB, CSA C22.2, IEEE 1547-2018, NEC 2023 Compliant, CEC Listed, and SGIP Eligible.

The Sol-Ark SA-30K-3P is available now through Emston Tech Inc.
