SolarEdge 11.4 kW Inverter SE11400H-US000BEU4

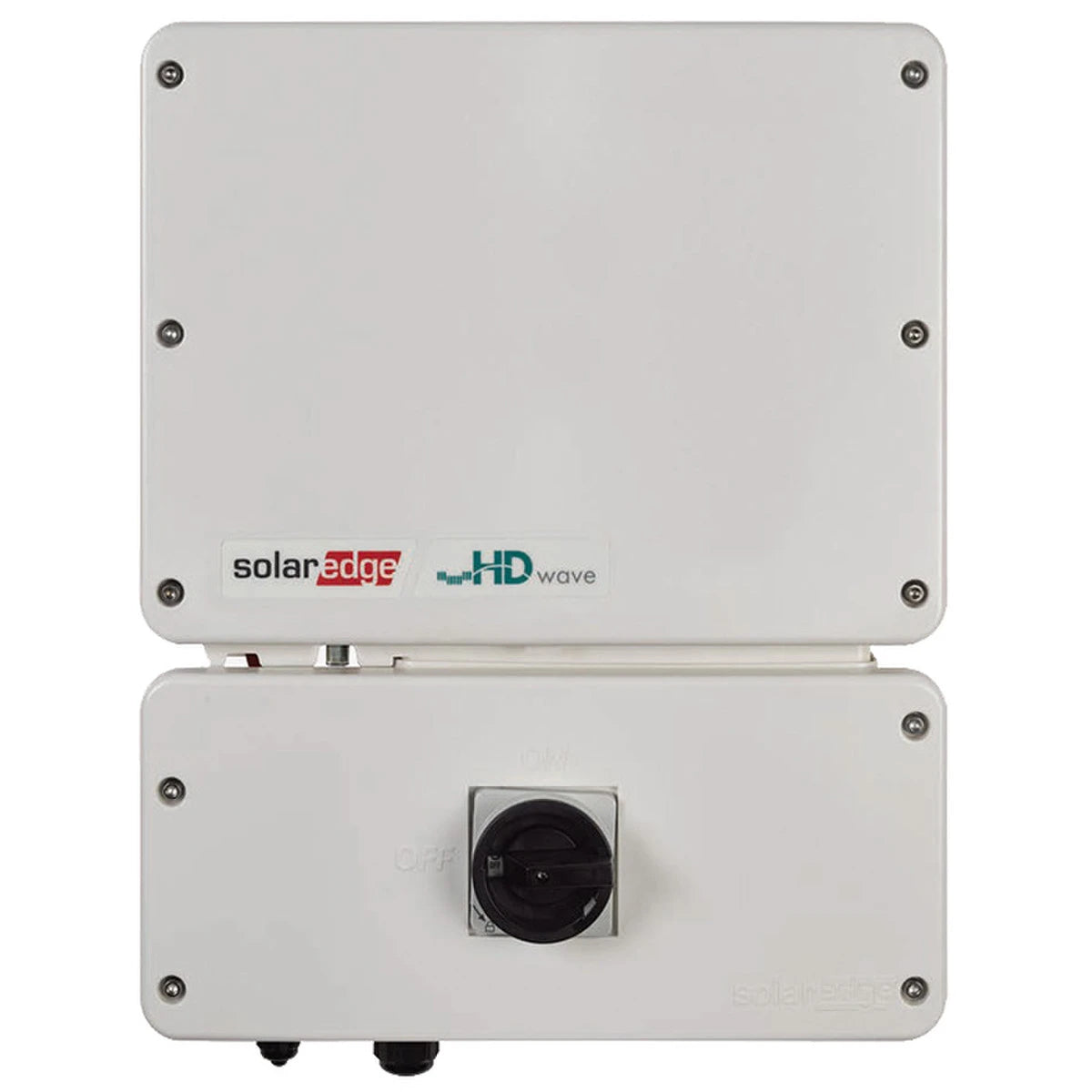

SolarEdge SE11400H-US000BEU4 — 11.4kW HD-Wave Single-Phase Inverter

The SolarEdge SE11400H-US000BEU4 is a high-capacity, single-phase grid-tie inverter designed to deliver maximum energy harvest for large residential solar systems. Featuring award-winning HD-Wave technology, this inverter replaces traditional, heavy cooling elements with advanced digital processing to synthesize a clean sine wave. At Emston Tech Inc, we provide this powerful 11.4kW unit to ensure your high-demand home remains energy-efficient and future-ready.

High-Output Performance & HD-Wave Efficiency
The SE11400H-US000BEU4 is engineered for superior power conversion with a record-breaking 99.2% maximum efficiency (99% CEC weighted at 240V). Its compact design allows for a one-person installation while supporting significant system oversizing:

• Rated AC Power Output: 11,400 VA @ 240V / 10,000 VA @ 208V.
• Maximum DC Input: Supports up to 17,650W of solar (155% DC/AC oversizing).
• Optimization: Designed specifically to work with SolarEdge Power Optimizers for module-level MPPT and performance tracking.

Smarter Commissioning with SetApp
This modern "SetApp" model eliminates the traditional LCD screen in favor of a streamlined, smartphone-based setup. Using the SolarEdge SetApp and a local Wi-Fi access point, installers can commission the inverter quickly and securely, ensuring the system is optimized and updated with the latest firmware upon activation.

Safety and Compliance Standards
Safety is paramount with the SE11400H-US000BEU4. Emston Tech Inc ensures your system meets all modern electrical codes, including NEC 2014–2023 requirements, through integrated safety features:

• Integrated Arc Fault Protection (AFCI): Standard UL 1699B compliance.
• Rapid Shutdown (RSD): Automatic DC voltage reduction to safe levels during grid outages or emergency shutoffs.
• Grid Standards: Certified to UL 1741 SA/SB, IEEE 1547, and Rule 21/Rule 14H standards.

Reliable and Connectivity-Rich Design:

• Cooling: Natural convection cooling for quiet, fan-less operation (noise level < 50 dBA).
• Durability: NEMA 4X rated enclosure suitable for both indoor and outdoor installations.
• Monitoring: Built-in module-level monitoring with connectivity via Ethernet, RS485, and optional Wi-Fi or Cellular plug-ins.
• Temperature Range: Operates reliably from -40°F to 140°F (-40°C to 60°C).

Technical Specifications:

• Manufacturer Part Number: SE11400H-US000BEU4
• Dimensions: 21.06 x 14.6 x 7.3 inches
• Weight: 38.8 lbs

Standard 12-Year Warranty
The SolarEdge SE11400H-US000BEU4 is backed by a standard 12-year manufacturer warranty, which can be extended to 20 or 25 years through Emston Tech Inc for long-term peace of mind.
