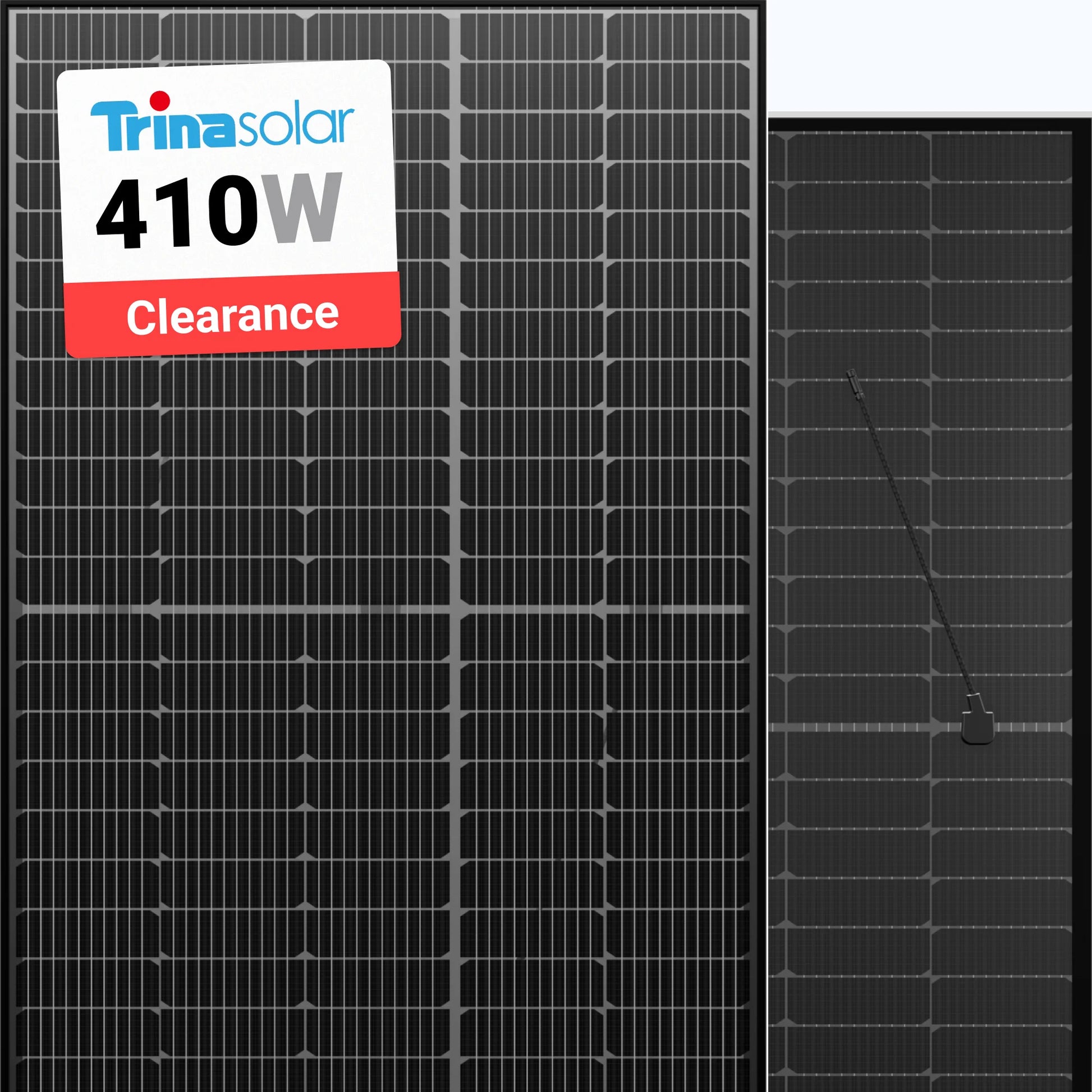

Trina 410W Solar Panel 144 Cell Bifacial TSM-410-NE09RC.05 Clearance

The TSM-410NE09RC.05, provided by Emston Tech Inc, is a high-performance solar module designed to bring durability and efficiency to the next level. Utilizing Passivated Emitter Rear Contact (PERC) technology, this model features an additional reflective layer within the cells to capture more sunlight and ensure excellent power output for your energy system.

To further boost performance, the TSM-410NE09RC.05 incorporates half-cut cell technology. By using cells that are half the size of those found in standard panels, this module achieves reduced power consumption, extended operational life, and enhanced efficiency in low-light conditions. This model reaches an efficiency of 20.5%, which is well above the market average. As a bifacial module, it can absorb photons from both sides simultaneously, potentially increasing efficiency by up to 30%. The design is as impressive as the specifications: at just 1.18" thick, the panel features a completely black, smooth surface that provides a sleek look without compromising reliability. Trina Solar and Emston Tech Inc back this product with a 25-year product warranty and a guarantee that performance will remain at 89.4% or more after 25 years.

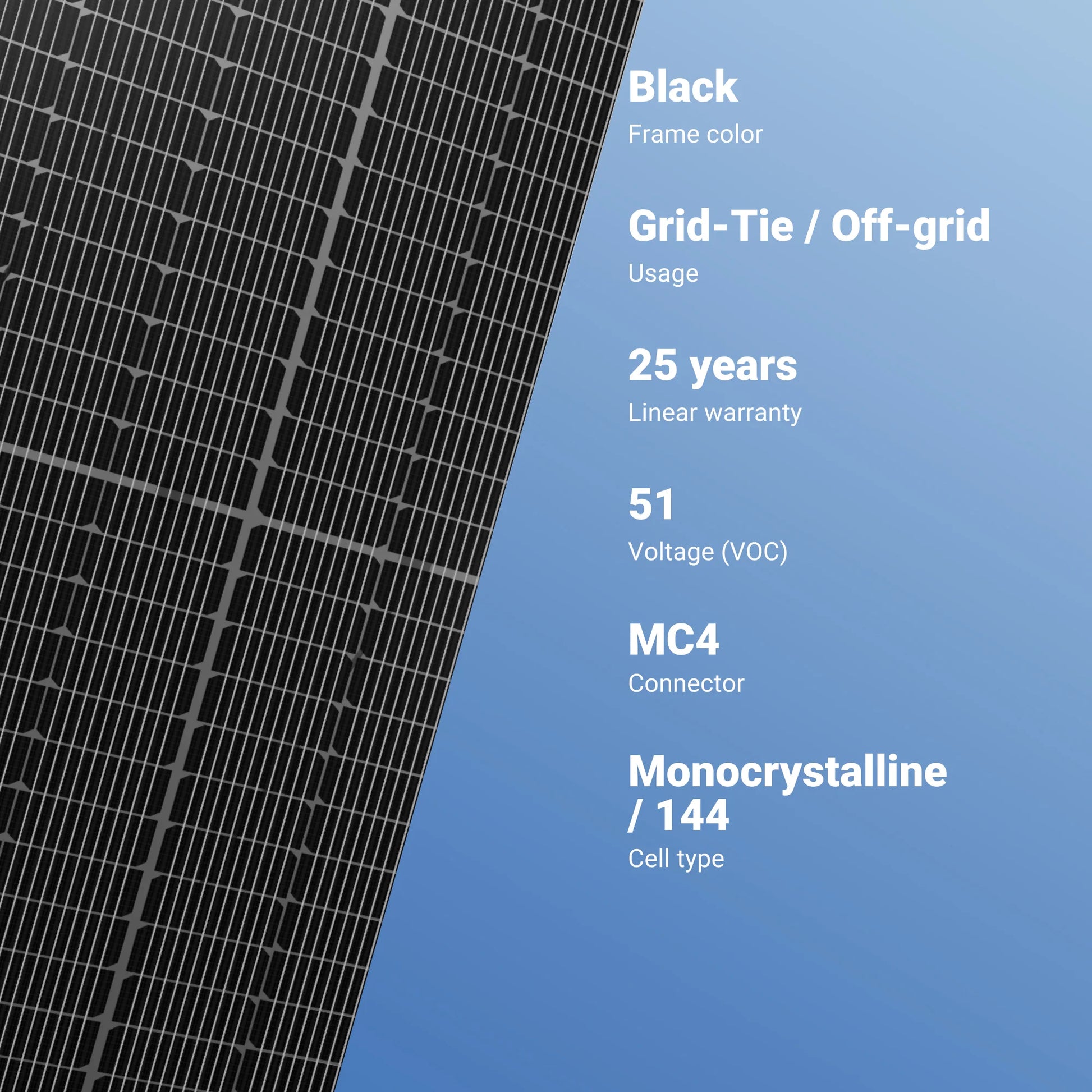

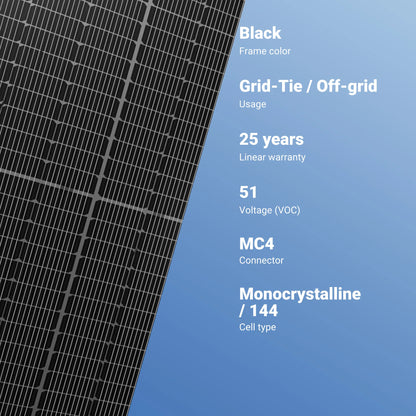

• 410 W power output
• 144 half-cut PERC cells
• 20.5% efficiency
• 1500 V DC maximum system voltage
• MC4 EVO2 connectors
• 25-year product and 25-year performance warranties

Increased power and efficiency

PERC technology enhances the already high efficiency of 20.5 percent. By adding robust PID resistance and unique glass lamination, the manufacturer has created an efficient and highly durable model. The TSM-410NE09RC.05 produces a reliable 410 W of power under standard test conditions, ensuring Emston Tech Inc customers receive consistent energy yields.

Better performance at high temperatures

An excellent temperature coefficient ensures higher energy production even as temperatures rise. For every 1.8°F increase above 77°F, the panel’s efficiency decreases by only -0.3%, allowing for superior performance during peak summer hours.

Quality and reliability

The TSM-410NE09RC.05 is subject to rigorous quality and reliability testing, with numerous checks throughout the production process. The high level of automation in the manufacturing facilities virtually eliminates human error, ensuring Emston Tech Inc delivers a product dedicated to the highest standards of quality, safety, and dependability.

Low degradation for a longer lifespan

Trina Solar guarantees that these panels will lose no more than 1% of their power output in the first year of service. From the 2nd to the 25th year, the average annual power decline is capped at 0.40%. This ensures the module retains over 89.4% of its original output after 25 years of operation.

Certified for the most extreme environmental conditions

This model is highly resistant to PID, salt, acid, and ammonia. It is built to withstand extreme mechanical loads of up to 6000 Pa on the front and 4000 Pa on the back. This toughness is achieved through a 1.18" thick aluminum alloy frame and a protective layer of tempered glass.

Outstanding all-black design

The panel features a sophisticated all-black design that looks great on any roof. Through specialized treatment and selection processes, the manufacturer ensures excellent cell color uniformity. The use of thinner wires to connect the cells creates a smooth, uninterrupted surface when viewed from a distance.

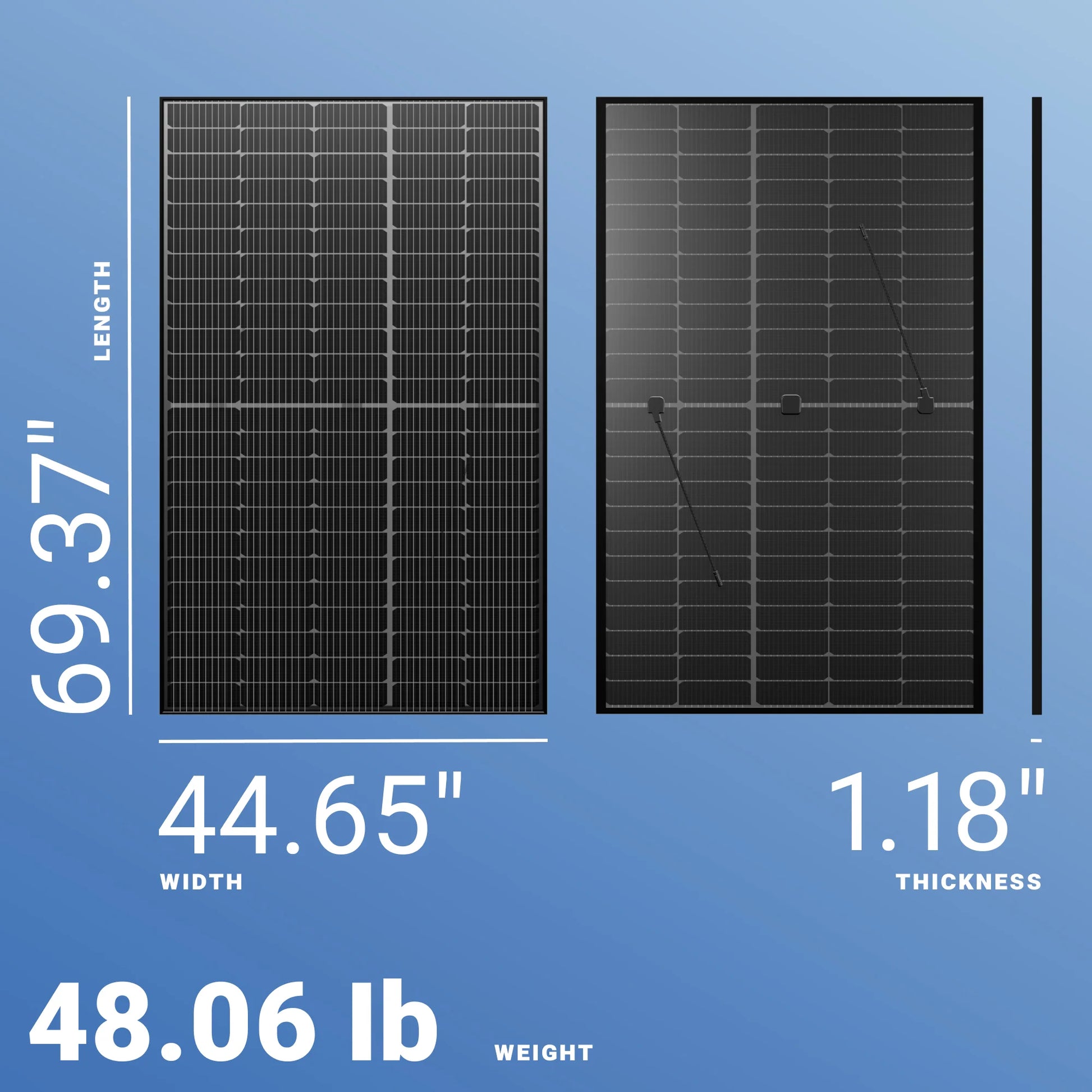

Size
69.37" x 44.65" x 1.18"

Weight
47 lb
